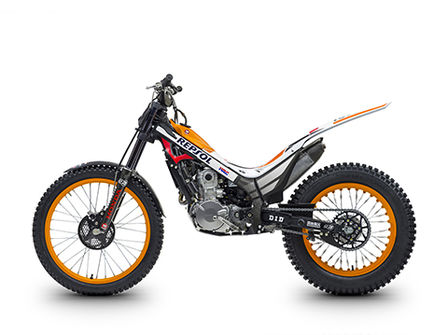

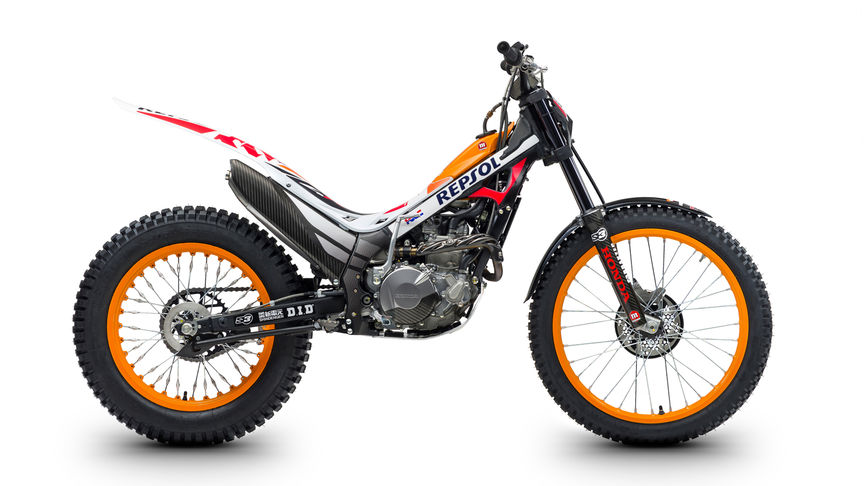

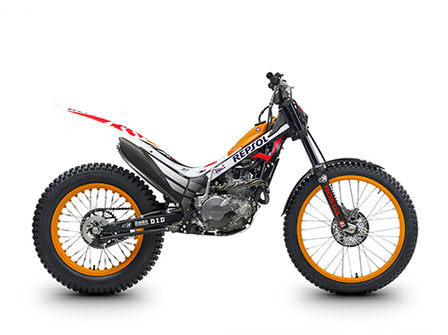

Montesa Cota 4RT 260

Montesa Cota 4RT 260

Specifications

Your bike in detail

Offers superior equipment as well as the image of the motorcycle that dominates the world championships



Repsol Replica

Choose colour (1)

Montesa Cota 4RT260 Race Replica key features

Montesa Cota 4RT260 Race Replica Specifications ▲

Show specifications

  • Engine
    Bore × Stroke (mm) 78 × 54.2 mm
    Carburation Electronic fuel injection PGM-FI
    Compression Ratio 10.5: 1
    Engine Displacement (cm3) 258.9 cm3
    Engine Type Single, 4-strokes, 4 valves, SOHC, liquid cooled
    Starter Kick starter
  • Wheels
    Brakes Front 185 × 3.5 mm hydraulic disc with 4-piston caliper and sintered metal pads
    Brakes Rear 150 × 2.5 mm hydraulic disc with 2-piston caliper and sintered metal pads
    Suspension Front 39 mm TECH telescopic fork with compression and rebound adjustment. 175mm stroke
    Suspension Rear Pro-Link system, SHOWA shock absorber with compression and rebound adjustment. 170 mm stroke
    Tyres Front Front 80/100 21 (Michelin)
    Tyres Rear Rear120/100 R18 (Michelin)
    Wheels Front Aluminium rims/ wire spokes
    Wheels Rear Aluminium rims/ wire spokes
  • Dimensions and Weights
    Caster Angle 23°
    Dimensions (L×W×H) (mm) 2,016 × 830 × 1,130 mm
    Frame type Diamond, Aluminium twin spar
    Fuel Tank Capacity (Litres) 1.9 litres
    Ground Clearance (mm) 335 mm
    Seat Height (mm) 650 mm
    Trail (mm) 63 mm
    Wheelbase (mm) 1,321 mm
  • Transmission
    Clutch Wet, multiplate with coil springs
    Final Drive Roller chain
  • Instruments and Electrics
    Ignition System Electronic, digital transistor

▲
