CB500F

CB500F

Specifications

Your bike in detail

Select a bike to display specification details.

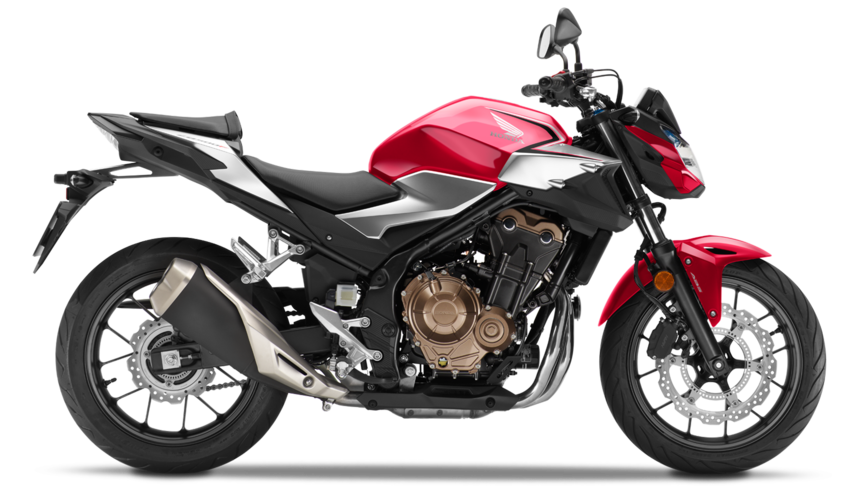

CB500F 2019

Choose variant (3)

A sharp, fresh aesthetic and compact, street fighter style. A2 licence friendly.


4 999 EUR

Grand Prix Red

Choose colour (4)

CB500F 2019

CB500F 2019 Specifications ▲

Show specifications

  • Engine
    Bore × Stroke (mm) 67mm x 66.8mm
    Carburation PGM-FI electronic fuel injection
    Compression Ratio 10.7
    Engine Displacement (cm3) 471cc
    Engine Type Liquid-cooled 4-stroke DOHC parallel twin
    Max. Power Output 35kw/8,600rpm
    Max. Torque 43Nm/6,500rpm
    Starter Electric
    Throttle Bore 34
    C02 Emissions (g/km) 80
  • Wheels
    Brakes Front 320 mm x 5 mm disc with two piston caliper
    Brakes Rear 240 mm x 5 mm disc with single piston caliper
    Suspension Front Conventional Telescopic, 41mm, pre-load adjustable
    Suspension Rear Prolink mono with 5 stage pre-load adjuster, steel square pipe swingarm
    Tyre Size Front 120/70ZR-17M/C
    Tyre Size Rear 160/60ZR-17M/C
    Wheels Front Multi-Spoke Cast Aluminium
    Wheels Rear Multi-Spoke Cast Aluminium
    ABS System 2 channel
  • Dimensions and Weights
    Battery Capacity (VAh) 12v 7.4Ah
    Caster Angle 25.5°
    Dimensions (L×W×H) (mm) 2,080mmX790mmX1,060mm
    Frame type Steel diamond
    Fuel Tank Capacity (Litres) 17.1L
    Fuel Consumption 28.6km/L / 3.5l/100km
    Ground Clearance (mm) 145mm
    Kerb Weight (kg) 189kg
    Seat Height (mm) 789mm
    Trail (mm) 102mm
    Wheelbase (mm) 1,410mm
  • Transmission
    Clutch Wet multiplate, A.S.clutch
    Final Drive Chain
    Gearbox 6-speed
  • Instruments and Electrics
    Headlights LED
    Instruments Digital Speedometer, Digital Bar Graph Tachometer, Dual Trip Meters, Digital Fuel Level Gauge & Fuel Consumption Gauge, Digital Clock, Water Temp, Gear position indicator
    Tail Light LED

▲
