SH125i

Specifications and Price

Change model

Specifications

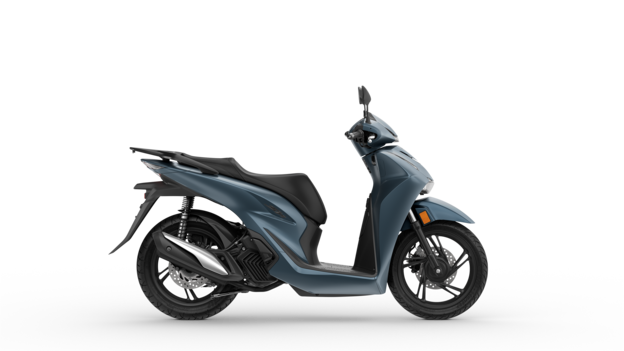

SH125i 2026

Configure your

Clutch

Automatic; centrifugal
Headlights

LED
Seat Height (mm)

799 mm
Honda Selectable Torque Control

Yes
Instruments

4.2 inch TFT meter

Bore × Stroke (mm)

53.5 mm x 55.5 mm
Carburation

PGM-FI electronic fuel injection
Compression Ratio

11.5
Engine Displacement (cm3)

125 cc
Engine Type

Liquid-cooled, 4-stroke SOHC 4 valves
Max. Power Output

9.6 kw at 8,250 rpm
Max. Torque

12 Nm / 6,500 rpm
Starter

E-starter
C02 Emissions (g/km)

50 g/km
Oil Capacity (Litres)

1 L
Noise Level (dB)

83 db (A)
Max Speed

98 km/h

Brakes Front

240 mm disc, 2 piston caliper
Brakes Rear

240 mm disc, single piston caliper
Suspension Front

Telescopic 33 mm
Suspension Rear

Dual-damper unit swing arm
Tyres Front

100/80-16 M/C 50P
Tyres Rear

120/80-16 M/C 60P
Wheels Front

16 M/C x MT 2.50
Wheels Rear

16 M/C x MT 2.75
ABS System

2-channel

Battery Capacity (VAh)

12 V 7.4 Ah
Caster Angle

26°
Dimensions (L×W×H) (mm)

2,090 mm x 730 mm x 1,155 mm
Frame type

Tubular steel underbone
Fuel Tank Capacity (Litres)

7 L
Fuel Consumption

2,2 L / 100 km
Ground Clearance (mm)

145 mm
Kerb Weight (kg)

138 kg
Seat Height (mm)

799 mm
Trail (mm)

85 mm
Wheelbase (mm)

1,350 mm
Turning Radius

2.0 m

Clutch

Automatic; centrifugal
Final Drive

V-Belt
Transmission Type

CVT

Headlights

LED
Connectivity

RoadSync
Honda Selectable Torque Control

Yes
Instruments

4.2 inch TFT meter
Tail Light

LED
USB Socket

USB-C

Additional Features

Idling Stop

Type

AGM

SH125i Accessories 2026

Configure your

Clutch

Automatic; centrifugal
Headlights

LED
Seat Height (mm)

799 mm
Honda Selectable Torque Control

Yes
Instruments

4.2 inch TFT meter

Bore × Stroke (mm)

53.5 mm x 55.5 mm
Carburation

PGM-FI electronic fuel injection
Compression Ratio

11.5
Engine Displacement (cm3)

125 cc
Engine Type

Liquid-cooled, 4-stroke SOHC 4 valves
Max. Power Output

9.6 kw at 8,250 rpm
Max. Torque

12 Nm / 6,500 rpm
Starter

E-starter
C02 Emissions (g/km)

50 g/km
Oil Capacity (Litres)

1 L
Noise Level (dB)

83 db (A)
Max Speed

98 km/h

Brakes Front

240 mm disc, 2 piston caliper
Brakes Rear

240 mm disc, single piston caliper
Suspension Front

Telescopic 33 mm
Suspension Rear

Dual-damper unit swing arm
Tyres Front

100/80-16 M/C 50P
Tyres Rear

120/80-16 M/C 60P
Wheels Front

16 M/C x MT 2.50
Wheels Rear

16 M/C x MT 2.75
ABS System

2-channel

Battery Capacity (VAh)

12 V 7.4 Ah
Caster Angle

26°
Dimensions (L×W×H) (mm)

2,090 mm x 730 mm x 1,155 mm
Frame type

Tubular steel underbone
Fuel Tank Capacity (Litres)

7 L
Fuel Consumption

2,2 L / 100 km
Ground Clearance (mm)

145 mm
Kerb Weight (kg)

138 kg
Seat Height (mm)

799 mm
Trail (mm)

85 mm
Wheelbase (mm)

1,350 mm
Turning Radius

2.0 m

Clutch

Automatic; centrifugal
Final Drive

V-Belt
Transmission Type

CVT

Headlights

LED
Connectivity

RoadSync
Honda Selectable Torque Control

Yes
Instruments

4.2 inch TFT meter
Tail Light

LED
USB Socket

USB-C

Additional Features

Idling Stop

Type

AGM

SH125i Top Box 2026

Configure your

Clutch

Automatic; centrifugal
Headlights

LED
Seat Height (mm)

799 mm
Honda Selectable Torque Control

Yes
Instruments

4.2 inch TFT meter

Bore × Stroke (mm)

53.5 mm x 55.5 mm
Carburation

PGM-FI electronic fuel injection
Compression Ratio

11.5
Engine Displacement (cm3)

125 cc
Engine Type

Liquid-cooled, 4-stroke SOHC 4 valves
Max. Power Output

9.6 kw at 8,250 rpm
Max. Torque

12 Nm / 6,500 rpm
Starter

E-starter
C02 Emissions (g/km)

50 g/km
Oil Capacity (Litres)

1 L
Noise Level (dB)

83 db (A)
Max Speed

98 km/h

Brakes Front

240 mm disc, 2 piston caliper
Brakes Rear

240 mm disc, single piston caliper
Suspension Front

Telescopic 33 mm
Suspension Rear

Dual-damper unit swing arm
Tyres Front

100/80-16 M/C 50P
Tyres Rear

120/80-16 M/C 60P
Wheels Front

16 M/C x MT 2.50
Wheels Rear

16 M/C x MT 2.75
ABS System

2-channel

Battery Capacity (VAh)

12 V 7.4 Ah
Caster Angle

26°
Dimensions (L×W×H) (mm)

2,090 mm x 730 mm x 1,155 mm
Frame type

Tubular steel underbone
Fuel Tank Capacity (Litres)

7 L
Fuel Consumption

2,2 L / 100 km
Ground Clearance (mm)

145 mm
Kerb Weight (kg)

138 kg
Seat Height (mm)

799 mm
Trail (mm)

85 mm
Wheelbase (mm)

1,350 mm
Turning Radius

2.0 m

Clutch

Automatic; centrifugal
Final Drive

V-Belt
Transmission Type

CVT

Headlights

LED
Connectivity

RoadSync
Honda Selectable Torque Control

Yes
Instruments

4.2 inch TFT meter
Tail Light

LED
USB Socket

USB-C

Additional Features

Idling Stop

Type

AGM

SH125i Smart Top Box Accessories 2026

Configure your

Clutch

Automatic; centrifugal
Headlights

LED
Seat Height (mm)

799 mm
Honda Selectable Torque Control

Yes
Instruments

4.2 inch TFT meter

Bore × Stroke (mm)

53.5 mm x 55.5 mm
Carburation

PGM-FI electronic fuel injection
Compression Ratio

11.5
Engine Displacement (cm3)

125 cc
Engine Type

Liquid-cooled, 4-stroke SOHC 4 valves
Max. Power Output

9.6 kw at 8,250 rpm
Max. Torque

12 Nm / 6,500 rpm
Starter

E-starter
C02 Emissions (g/km)

50 g/km
Oil Capacity (Litres)

1 L
Noise Level (dB)

83 db (A)
Max Speed

98 km/h

Brakes Front

240 mm disc, 2 piston caliper
Brakes Rear

240 mm disc, single piston caliper
Suspension Front

Telescopic 33 mm
Suspension Rear

Dual-damper unit swing arm
Tyres Front

100/80-16 M/C 50P
Tyres Rear

120/80-16 M/C 60P
Wheels Front

16 M/C x MT 2.50
Wheels Rear

16 M/C x MT 2.75
ABS System

2-channel

Battery Capacity (VAh)

12 V 7.4 Ah
Caster Angle

26°
Dimensions (L×W×H) (mm)

2,090 mm x 730 mm x 1,155 mm
Frame type

Tubular steel underbone
Fuel Tank Capacity (Litres)

7 L
Fuel Consumption

2,2 L / 100 km
Ground Clearance (mm)

145 mm
Kerb Weight (kg)

138 kg
Seat Height (mm)

799 mm
Trail (mm)

85 mm
Wheelbase (mm)

1,350 mm
Turning Radius

2.0 m

Clutch

Automatic; centrifugal
Final Drive

V-Belt
Transmission Type

CVT

Headlights

LED
Connectivity

RoadSync
Honda Selectable Torque Control

Yes
Instruments

4.2 inch TFT meter
Tail Light

LED
USB Socket

USB-C

Additional Features

Idling Stop

Type

AGM

SH125i Smart Top Box 2026

Configure your

Clutch

Automatic; centrifugal
Headlights

LED
Seat Height (mm)

799 mm
Honda Selectable Torque Control

Yes
Instruments

4.2 inch TFT meter

Bore × Stroke (mm)

53.5 mm x 55.5 mm
Carburation

PGM-FI electronic fuel injection
Compression Ratio

11.5
Engine Displacement (cm3)

125 cc
Engine Type

Liquid-cooled, 4-stroke SOHC 4 valves
Max. Power Output

9.6 kw at 8,250 rpm
Max. Torque

12 Nm / 6,500 rpm
Starter

E-starter
C02 Emissions (g/km)

50 g/km
Oil Capacity (Litres)

1 L
Noise Level (dB)

83 db (A)
Max Speed

98 km/h

Brakes Front

240 mm disc, 2 piston caliper
Brakes Rear

240 mm disc, single piston caliper
Suspension Front

Telescopic 33 mm
Suspension Rear

Dual-damper unit swing arm
Tyres Front

100/80-16 M/C 50P
Tyres Rear

120/80-16 M/C 60P
Wheels Front

16 M/C x MT 2.50
Wheels Rear

16 M/C x MT 2.75
ABS System

2-channel

Battery Capacity (VAh)

12 V 7.4 Ah
Caster Angle

26°
Dimensions (L×W×H) (mm)

2,090 mm x 730 mm x 1,155 mm
Frame type

Tubular steel underbone
Fuel Tank Capacity (Litres)

7 L
Fuel Consumption

2,2 L / 100 km
Ground Clearance (mm)

145 mm
Kerb Weight (kg)

138 kg
Seat Height (mm)

799 mm
Trail (mm)

85 mm
Wheelbase (mm)

1,350 mm
Turning Radius

2.0 m

Clutch

Automatic; centrifugal
Final Drive

V-Belt
Transmission Type

CVT

Headlights

LED
Connectivity

RoadSync
Honda Selectable Torque Control

Yes
Instruments

4.2 inch TFT meter
Tail Light

LED
USB Socket

USB-C

Additional Features

Idling Stop

Type

AGM

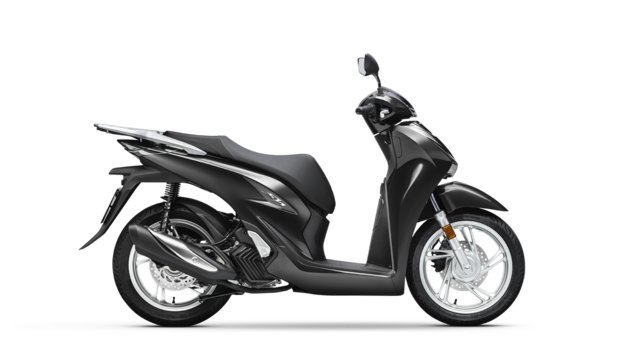

SH125i 2024

Configure your

Clutch

Automatic Centrifugal Clutch Dry Type
Headlights

LED
Seat Height (mm)

799mm
Instruments

LCD presents all warning lights – including Smart Key, HSTC/ABS and Idling Stop operation – neatly around a central digital speedo/odometer display.

Bore × Stroke (mm)

53.5 x 55.5
Carburation

PGM-FI electronic fuel injection
Compression Ratio

11.5
Engine Displacement (cm3)

124.8cc
Engine Type

Liquid-cooled SOHC 4-stroke 4-valve single-cylinder
Max. Power Output

9.6kW/8,250rpm
Max. Torque

11.4Nm/6,500rpm
Starter

SELF
Oil Capacity (Litres)

1L

Brakes Front

240mm disc, 3 piston caliper
Brakes Rear

240mm disc, single piston caliper
Suspension Front

Telescopic
Suspension Rear

Dual-damper unit swing arm
Tyres Front

16M/C X MT2.50
Tyre Size Front

100/80-16 inch
Tyre Size Rear

120/80-16 inch
Tyres Rear

16M/C X MT2.75
Wheels Front

16M/C x MT2.50
Wheels Rear

16M/C x MT2.75
ABS System

2 Channel

Battery Capacity (VAh)

12V7Ah
Caster Angle

26°
Dimensions (L×W×H) (mm)

2,090mm x 730mm x 1,130mm
Frame type

Tubular Steel Underbone
Fuel Tank Capacity (Litres)

7L
Fuel Consumption

45.5km/litre
Ground Clearance (mm)

142mm
Kerb Weight (kg)

137kg
Seat Height (mm)

799mm
Trail (mm)

85.2mm
Wheelbase (mm)

1,353mm

Clutch

Automatic Centrifugal Clutch Dry Type
Final Drive

V-Belt
Gearbox

Automatic
Transmission Type

CVT

Headlights

LED
Ignition System

Automatic
Instruments

LCD presents all warning lights – including Smart Key, HSTC/ABS and Idling Stop operation – neatly around a central digital speedo/odometer display.
Tail Light

LED
USB Socket

Yes

SH125i Topbox 2024

Configure your

Clutch

Automatic Centrifugal Clutch Dry Type
Headlights

LED
Seat Height (mm)

799mm
Instruments

LCD presents all warning lights – including Smart Key, HSTC/ABS and Idling Stop operation – neatly around a central digital speedo/odometer display.

Bore × Stroke (mm)

53.5 x 55.5
Carburation

PGM-FI electronic fuel injection
Compression Ratio

11.5
Engine Displacement (cm3)

124.8cc
Engine Type

Liquid-cooled SOHC 4-stroke 4-valve single-cylinder
Max. Power Output

9.6kW/8,250rpm
Max. Torque

11.4Nm/6,500rpm
Starter

SELF
Oil Capacity (Litres)

1L

Brakes Front

240mm disc, 3 piston caliper
Brakes Rear

240mm disc, single piston caliper
Suspension Front

Telescopic
Suspension Rear

Dual-damper unit swing arm
Tyres Front

16M/C X MT2.50
Tyre Size Front

100/80-16 inch
Tyre Size Rear

120/80-16 inch
Tyres Rear

16M/C X MT2.75
Wheels Front

16M/C x MT2.50
Wheels Rear

16M/C x MT2.75
ABS System

2 Channel

Battery Capacity (VAh)

12V7Ah
Caster Angle

26°
Dimensions (L×W×H) (mm)

2,090mm x 730mm x 1,130mm
Frame type

Tubular Steel Underbone
Fuel Tank Capacity (Litres)

7L
Fuel Consumption

45.5km/litre
Ground Clearance (mm)

142mm
Kerb Weight (kg)

137kg
Seat Height (mm)

799mm
Trail (mm)

85.2mm
Wheelbase (mm)

1,353mm

Clutch

Automatic Centrifugal Clutch Dry Type
Final Drive

V-Belt
Gearbox

Automatic
Transmission Type

CVT

Headlights

LED
Ignition System

Automatic
Instruments

LCD presents all warning lights – including Smart Key, HSTC/ABS and Idling Stop operation – neatly around a central digital speedo/odometer display.
Tail Light

LED
USB Socket

Yes

SH125i Sport 2024

Configure your

Clutch

Automatic Centrifugal Clutch Dry Type
Headlights

LED
Seat Height (mm)

799mm
Instruments

LCD presents all warning lights – including Smart Key, HSTC/ABS and Idling Stop operation – neatly around a central digital speedo/odometer display.

Bore × Stroke (mm)

53.5 x 55.5
Carburation

PGM-FI electronic fuel injection
Compression Ratio

11.5
Engine Displacement (cm3)

124.8cc
Engine Type

Liquid-cooled SOHC 4-stroke 4-valve single-cylinder
Max. Power Output

9.6kW/8,250rpm
Max. Torque

11.4Nm/6,500rpm
Starter

SELF
Oil Capacity (Litres)

1L

Brakes Front

240mm disc, 3 piston caliper
Brakes Rear

240mm disc, single piston caliper
Suspension Front

Telescopic
Suspension Rear

Dual-damper unit swing arm
Tyres Front

16M/C X MT2.50
Tyre Size Front

100/80-16 inch
Tyre Size Rear

120/80-16 inch
Tyres Rear

16M/C X MT2.75
Wheels Front

16M/C x MT2.50
Wheels Rear

16M/C x MT2.75
ABS System

2 Channel

Battery Capacity (VAh)

12V7Ah
Caster Angle

26°
Dimensions (L×W×H) (mm)

2,090mm x 730mm x 1,130mm
Frame type

Tubular Steel Underbone
Fuel Tank Capacity (Litres)

7L
Fuel Consumption

45.5km/litre
Ground Clearance (mm)

142mm
Kerb Weight (kg)

137kg
Seat Height (mm)

799mm
Trail (mm)

85.2mm
Wheelbase (mm)

1,353mm

Clutch

Automatic Centrifugal Clutch Dry Type
Final Drive

V-Belt
Gearbox

Automatic
Transmission Type

CVT

Headlights

LED
Ignition System

Automatic
Instruments

LCD presents all warning lights – including Smart Key, HSTC/ABS and Idling Stop operation – neatly around a central digital speedo/odometer display.
Tail Light

LED
USB Socket

Yes

SH125i Sport Topbox 2024

Configure your

Clutch

Automatic Centrifugal Clutch Dry Type
Headlights

LED
Seat Height (mm)

799mm
Instruments

LCD presents all warning lights – including Smart Key, HSTC/ABS and Idling Stop operation – neatly around a central digital speedo/odometer display.

Bore × Stroke (mm)

53.5 x 55.5
Carburation

PGM-FI electronic fuel injection
Compression Ratio

11.5
Engine Displacement (cm3)

124.8cc
Engine Type

Liquid-cooled SOHC 4-stroke 4-valve single-cylinder
Max. Power Output

9.6kW/8,250rpm
Max. Torque

11.4Nm/6,500rpm
Starter

SELF
Oil Capacity (Litres)

1L

Brakes Front

240mm disc, 3 piston caliper
Brakes Rear

240mm disc, single piston caliper
Suspension Front

Telescopic
Suspension Rear

Dual-damper unit swing arm
Tyres Front

16M/C X MT2.50
Tyre Size Front

100/80-16 inch
Tyre Size Rear

120/80-16 inch
Tyres Rear

16M/C X MT2.75
Wheels Front

16M/C x MT2.50
Wheels Rear

16M/C x MT2.75
ABS System

2 Channel

Battery Capacity (VAh)

12V7Ah
Caster Angle

26°
Dimensions (L×W×H) (mm)

2,090mm x 730mm x 1,130mm
Frame type

Tubular Steel Underbone
Fuel Tank Capacity (Litres)

7L
Fuel Consumption

45.5km/litre
Ground Clearance (mm)

142mm
Kerb Weight (kg)

137kg
Seat Height (mm)

799mm
Trail (mm)

85.2mm
Wheelbase (mm)

1,353mm

Clutch

Automatic Centrifugal Clutch Dry Type
Final Drive

V-Belt
Gearbox

Automatic
Transmission Type

CVT

Headlights

LED
Ignition System

Automatic
Instruments

LCD presents all warning lights – including Smart Key, HSTC/ABS and Idling Stop operation – neatly around a central digital speedo/odometer display.
Tail Light

LED
USB Socket

Yes

SH125i 2023

Configure your

Clutch

Automatic Centrifugal Clutch Dry Type
Headlights

LED
Seat Height (mm)

799mm
Instruments

LCD presents all warning lights – including Smart Key, HSTC/ABS and Idling Stop operation – neatly around a central digital speedo/odometer display.

Bore × Stroke (mm)

53.5 x 55.5
Carburation

PGM-FI electronic fuel injection
Compression Ratio

11.5
Engine Displacement (cm3)

124.8cc
Engine Type

Liquid-cooled SOHC 4-stroke 4-valve single-cylinder
Max. Power Output

9.6kW/8,250rpm
Max. Torque

11.4Nm/6,500rpm
Starter

SELF
Oil Capacity (Litres)

1L

Brakes Front

240mm disc, 3 piston caliper
Brakes Rear

240mm disc, single piston caliper
Suspension Front

Telescopic
Suspension Rear

Dual-damper unit swing arm
Tyres Front

16M/C X MT2.50
Tyre Size Front

100/80-16 inch
Tyre Size Rear

120/80-16 inch
Tyres Rear

16M/C X MT2.75
Wheels Front

16M/C x MT2.50
Wheels Rear

16M/C x MT2.75
ABS System

2 Channel

Battery Capacity (VAh)

12V7Ah
Caster Angle

26°
Dimensions (L×W×H) (mm)

2,085mm x 740mm x 1,129mm
Frame type

Tubular Steel Underbone
Fuel Tank Capacity (Litres)

7L
Fuel Consumption

44.6km/litre
Ground Clearance (mm)

142mm
Kerb Weight (kg)

133.9kg
Seat Height (mm)

799mm
Trail (mm)

85.2mm
Wheelbase (mm)

1,353mm

Clutch

Automatic Centrifugal Clutch Dry Type
Final Drive

V-Belt
Gearbox

Automatic
Transmission Type

CVT

Headlights

LED
Ignition System

Automatic
Instruments

LCD presents all warning lights – including Smart Key, HSTC/ABS and Idling Stop operation – neatly around a central digital speedo/odometer display.
Tail Light

LED
USB Socket

Yes

SH125i Top Box 2023

Configure your

Clutch

Automatic Centrifugal Clutch Dry Type
Headlights

LED
Seat Height (mm)

799mm
Instruments

LCD presents all warning lights – including Smart Key, HSTC/ABS and Idling Stop operation – neatly around a central digital speedo/odometer display.

Bore × Stroke (mm)

53.5 x 55.5
Carburation

PGM-FI electronic fuel injection
Compression Ratio

11.5
Engine Displacement (cm3)

124.8cc
Engine Type

Liquid-cooled SOHC 4-stroke 4-valve single-cylinder
Max. Power Output

9.6kW/8,250rpm
Max. Torque

11.4Nm/6,500rpm
Starter

SELF
Oil Capacity (Litres)

1L

Brakes Front

240mm disc, 3 piston caliper
Brakes Rear

240mm disc, single piston caliper
Suspension Front

Telescopic
Suspension Rear

Dual-damper unit swing arm
Tyres Front

16M/C X MT2.50
Tyre Size Front

100/80-16 inch
Tyre Size Rear

120/80-16 inch
Tyres Rear

16M/C X MT2.75
Wheels Front

16M/C x MT2.50
Wheels Rear

16M/C x MT2.75
ABS System

2 Channel

Battery Capacity (VAh)

12V7Ah
Caster Angle

26°
Dimensions (L×W×H) (mm)

2,085mm x 740mm x 1,129mm
Frame type

Tubular Steel Underbone
Fuel Tank Capacity (Litres)

7L
Fuel Consumption

44.6km/litre
Ground Clearance (mm)

142mm
Kerb Weight (kg)

133.9kg
Seat Height (mm)

799mm
Trail (mm)

85.2mm
Wheelbase (mm)

1,353mm

Clutch

Automatic Centrifugal Clutch Dry Type
Final Drive

V-Belt
Gearbox

Automatic
Transmission Type

CVT

Headlights

LED
Ignition System

Automatic
Instruments

LCD presents all warning lights – including Smart Key, HSTC/ABS and Idling Stop operation – neatly around a central digital speedo/odometer display.
Tail Light

LED
USB Socket

Yes

SH125i 2022

Configure your

Clutch

Automatic Centrifugal Clutch Dry Type
Headlights

LED
Seat Height (mm)

799mm
Instruments

LCD presents all warning lights – including Smart Key, HSTC/ABS and Idling Stop operation – neatly around a central digital speedo/odometer display.

Bore × Stroke (mm)

53.5 x 55.5
Carburation

PGM-FI electronic fuel injection
Compression Ratio

11.5
Engine Displacement (cm3)

124.8cc
Engine Type

Liquid-cooled SOHC 4-stroke 4-valve single-cylinder
Max. Power Output

9.2kW/8,250rpm
Max. Torque

11.4Nm/6,500rpm
Starter

SELF
Oil Capacity (Litres)

1L

Brakes Front

240mm disc, 3 piston caliper
Brakes Rear

240mm disc, single piston caliper
Suspension Front

Telescopic
Suspension Rear

Dual-damper unit swing arm
Tyres Front

16M/C X MT2.50
Tyre Size Front

100/80-16 inch
Tyre Size Rear

120/80-16 inch
Tyres Rear

16M/C X MT2.75
Wheels Front

16M/C x MT2.50
Wheels Rear

16M/C x MT2.75
ABS System

2 Channel

Battery Capacity (VAh)

12V7Ah
Caster Angle

26°
Dimensions (L×W×H) (mm)

2,085mm x 740mm x 1,129mm
Frame type

Tubular Steel Underbone
Fuel Tank Capacity (Litres)

7L
Fuel Consumption

44.6km/litre
Ground Clearance (mm)

142mm
Kerb Weight (kg)

133.9kg
Seat Height (mm)

799mm
Trail (mm)

85.2mm
Wheelbase (mm)

1,353mm

Clutch

Automatic Centrifugal Clutch Dry Type
Final Drive

V-Belt
Gearbox

Automatic
Transmission Type

CVT

Headlights

LED
Ignition System

Automatic
Instruments

LCD presents all warning lights – including Smart Key, HSTC/ABS and Idling Stop operation – neatly around a central digital speedo/odometer display.
Tail Light

LED
USB Socket

Yes

SH125i with Topbox 2022

Configure your

Clutch

Automatic Centrifugal Clutch Dry Type
Headlights

LED
Seat Height (mm)

799mm
Instruments

LCD presents all warning lights – including Smart Key, HSTC/ABS and Idling Stop operation – neatly around a central digital speedo/odometer display.

Bore × Stroke (mm)

53.5 x 55.5
Carburation

PGM-FI electronic fuel injection
Compression Ratio

11.5
Engine Displacement (cm3)

124.8cc
Engine Type

Liquid-cooled SOHC 4-stroke 4-valve single-cylinder
Max. Power Output

9.2kW/8,250rpm
Max. Torque

11.4Nm/6,500rpm
Starter

SELF
Oil Capacity (Litres)

1L

Brakes Front

240mm disc, 3 piston caliper
Brakes Rear

240mm disc, single piston caliper
Suspension Front

Telescopic
Suspension Rear

Dual-damper unit swing arm
Tyres Front

16M/C X MT2.50
Tyre Size Front

100/80-16 inch
Tyre Size Rear

120/80-16 inch
Tyres Rear

16M/C X MT2.75
Wheels Front

16M/C x MT2.50
Wheels Rear

16M/C x MT2.75
ABS System

2 Channel

Battery Capacity (VAh)

12V7Ah
Caster Angle

26°
Dimensions (L×W×H) (mm)

2,085mm x 740mm x 1,129mm
Frame type

Tubular Steel Underbone
Fuel Tank Capacity (Litres)

7L
Fuel Consumption

44.6km/litre
Ground Clearance (mm)

142mm
Kerb Weight (kg)

133.9kg
Seat Height (mm)

799mm
Trail (mm)

85.2mm
Wheelbase (mm)

1,353mm

Clutch

Automatic Centrifugal Clutch Dry Type
Final Drive

V-Belt
Gearbox

Automatic
Transmission Type

CVT

Headlights

LED
Ignition System

Electric
Instruments

LCD presents all warning lights – including Smart Key, HSTC/ABS and Idling Stop operation – neatly around a central digital speedo/odometer display.
Tail Light

LED
USB Socket

Yes

SH125i Sport Top Box 2023

Configure your

Clutch

Automatic Centrifugal Clutch Dry Type
Headlights

LED
Seat Height (mm)

799mm
Instruments

LCD presents all warning lights – including Smart Key, HSTC/ABS and Idling Stop operation – neatly around a central digital speedo/odometer display.

Bore × Stroke (mm)

53.5 x 55.5
Carburation

PGM-FI electronic fuel injection
Compression Ratio

11.5
Engine Displacement (cm3)

124.8cc
Engine Type

Liquid-cooled SOHC 4-stroke 4-valve single-cylinder
Max. Power Output

9.6kW/8,250rpm
Max. Torque

11.4Nm/6,500rpm
Starter

SELF
Oil Capacity (Litres)

1L

Brakes Front

240mm disc, 3 piston caliper
Brakes Rear

240mm disc, single piston caliper
Suspension Front

Telescopic
Suspension Rear

Dual-damper unit swing arm
Tyres Front

16M/C X MT2.50
Tyre Size Front

100/80-16 inch
Tyre Size Rear

120/80-16 inch
Tyres Rear

16M/C X MT2.75
Wheels Front

16M/C x MT2.50
Wheels Rear

16M/C x MT2.75
ABS System

2 Channel

Battery Capacity (VAh)

12V7Ah
Caster Angle

26°
Dimensions (L×W×H) (mm)

2,085mm x 740mm x 1,129mm
Frame type

Tubular Steel Underbone
Fuel Tank Capacity (Litres)

7L
Fuel Consumption

44.6km/litre
Ground Clearance (mm)

142mm
Kerb Weight (kg)

133.9kg
Seat Height (mm)

799mm
Trail (mm)

85.2mm
Wheelbase (mm)

1,353mm

Clutch

Automatic Centrifugal Clutch Dry Type
Final Drive

V-Belt
Gearbox

Automatic
Transmission Type

CVT

Headlights

LED
Ignition System

Automatic
Instruments

LCD presents all warning lights – including Smart Key, HSTC/ABS and Idling Stop operation – neatly around a central digital speedo/odometer display.
Tail Light

LED
USB Socket

Yes
